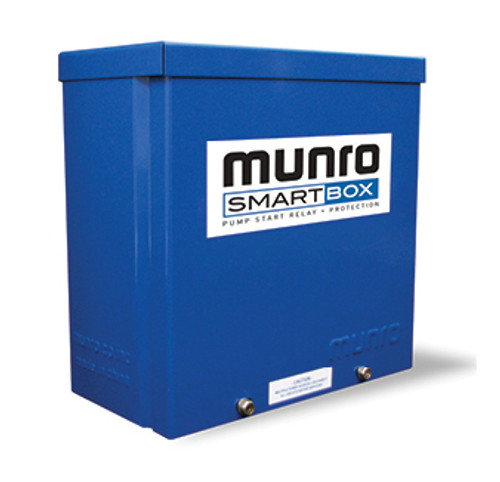

Munro SmartBox™– 2-Wire Decoder Compatible

Accepts a low amperage start/stop signal – to provide all of the benefits of the standard SmartBox, including loss of prime and run-dry protection, even when signal amperage is reduced.

Downloads:

A great option for pump start and protection in one, the Munro SmartBox includes a preset pressure sensor that alerts the control system of potential pump damage due to loss of prime or run-dry, and will work with all reliable lawn controllers. Voltage specific – 110v or 220v – to match line voltage to your pump.

  • Accepts a low amperage start/stop signal – to provide all of the benefits of the standard SmartBox, including loss of prime and run-dry protection, even when signal amperage is reduced.
  • Works with any brand, any style of 24v lawn controller.
  • For use with lawn controllers that provide less than .35 amps for pump start signaling.
  • Run-dry and dead-head protection.

CONSTRUCTION

  • Dimensions – 8”x8”x4”
  • Color coded wiring
  • UL listed relay
  • UL-50 Type 3R listed enclosure – approved for outdoor use, available in stainless steel or powder coated blue*
